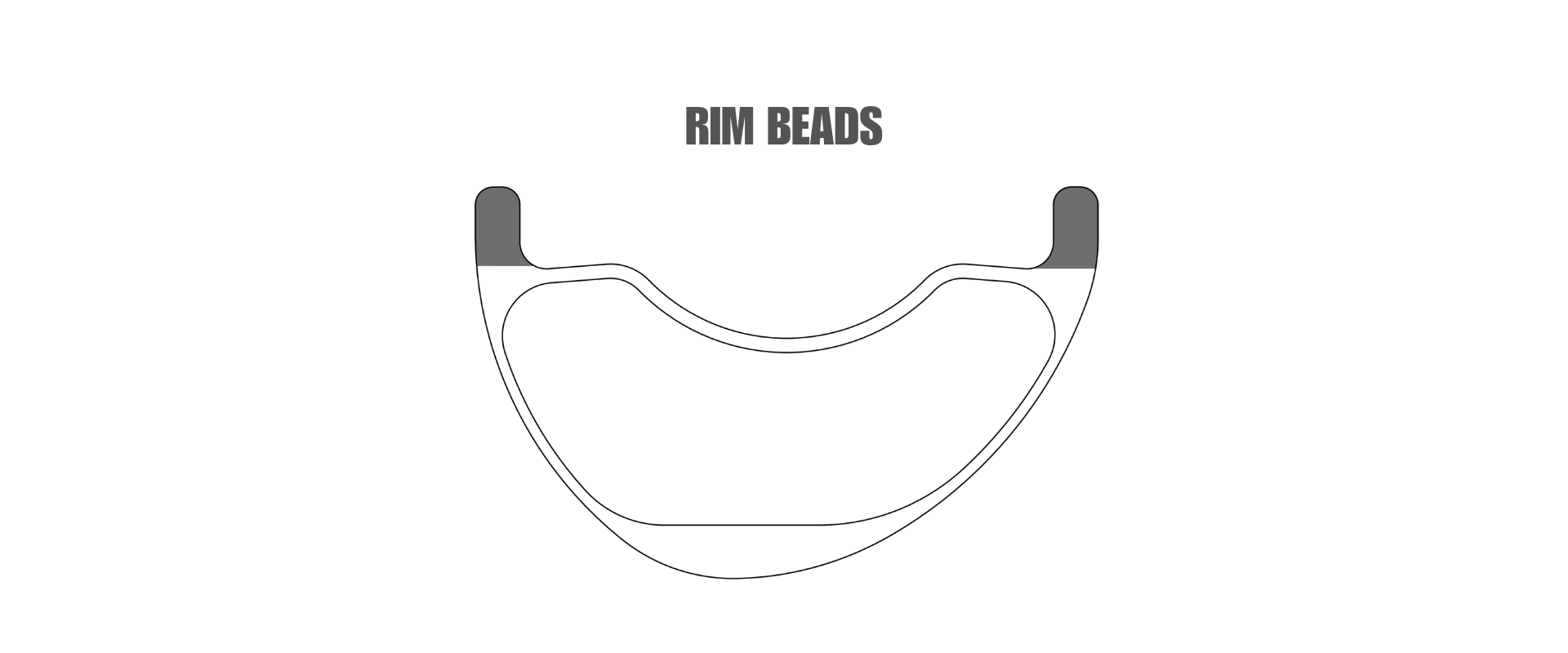

The rim bead is the outer edge area of the rim that retains the tire bead. Although it represents only a small part of the overall rim structure, its geometry has a significant influence on tire stability, impact resistance, and long-term reliability.

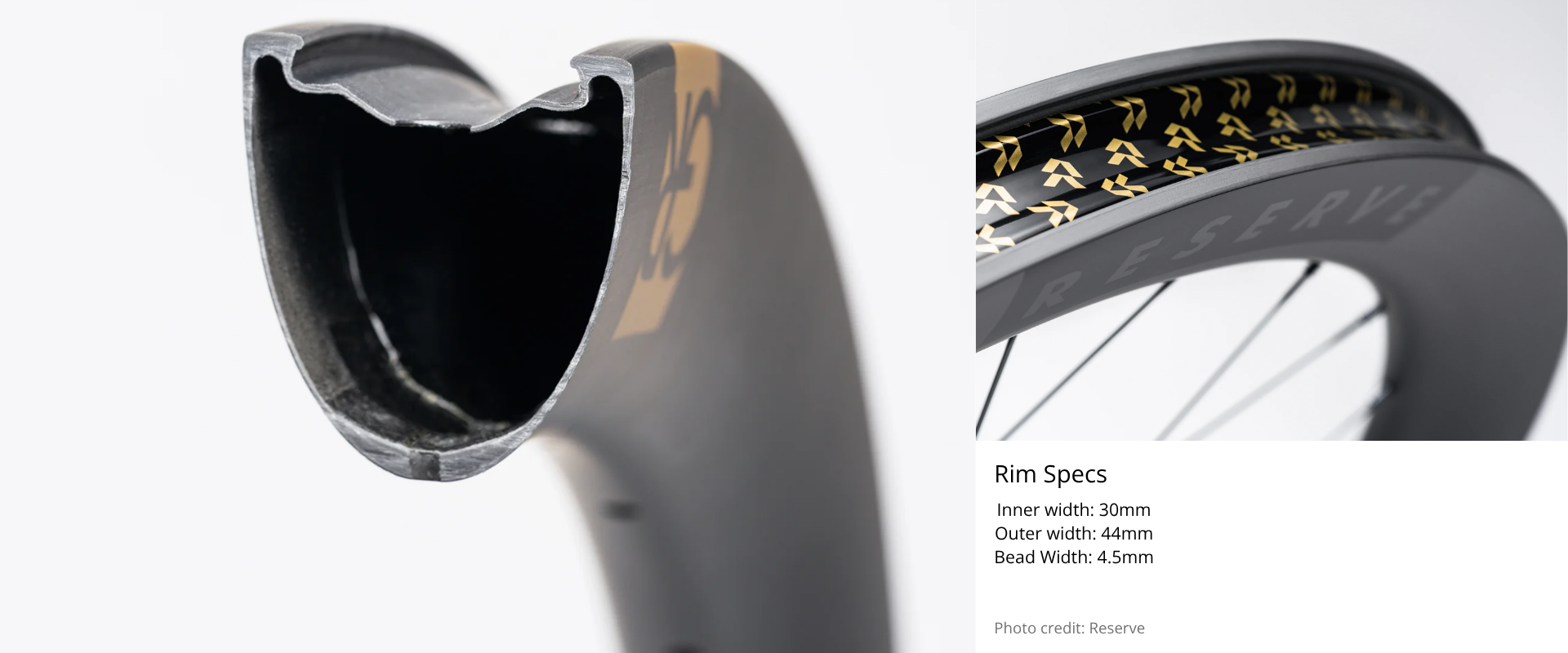

In recent years, several leading wheel brands (Duke, Reserve, to name a few) have introduced wider rim bead designs in their latest products, especially for MTB, gravel, and all-terrain applications. The reason is not simply to make the rim wider. Instead, it is about creating a better interface between the tire and rim to improve performance in demanding riding conditions.
For wheel brands developing their next carbon rim project, understanding the role of rim bead design can help create products that achieve the right balance between durability, weight, and ride quality.
A complete wheel system consists of rim, hub, spokes and nipples, and tires. Each component influences the final riding performance. The outer section of the rim has two critical functions:
A well-designed bead seat and bead lock help keep the tire properly locked in place, reducing risks such as tire burping during aggressive cornering or tubeless pressure loss.
However, another challenge occurs when the wheel encounters hard impacts.

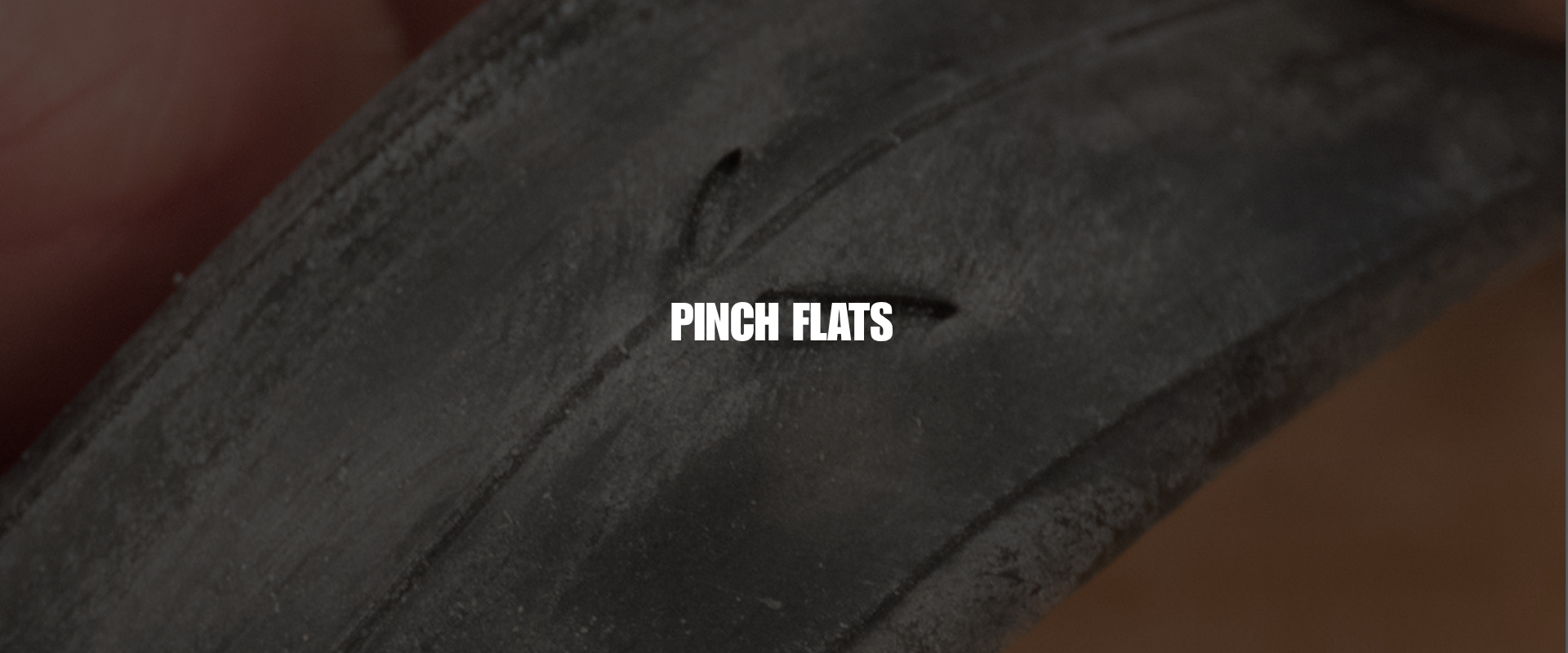

One of the most common and frustrating types of tire failure is the pinch flat (also known as a snake bite). It occurs when a strong impact—such as hitting a rock, pothole edge, or sharp obstacle—compresses the tire so severely that the tube or tire casing is trapped between the rim edge and the obstacle. The result can be damage to the tire structure or two small cuts on an inner tube.
While tire pressure is the most important factor affecting pinch flat risk, rim bead geometry also plays an important role. A well-designed rim bead can help control tire deformation and reduce the possibility of the rim creating excessive pressure points during impact.

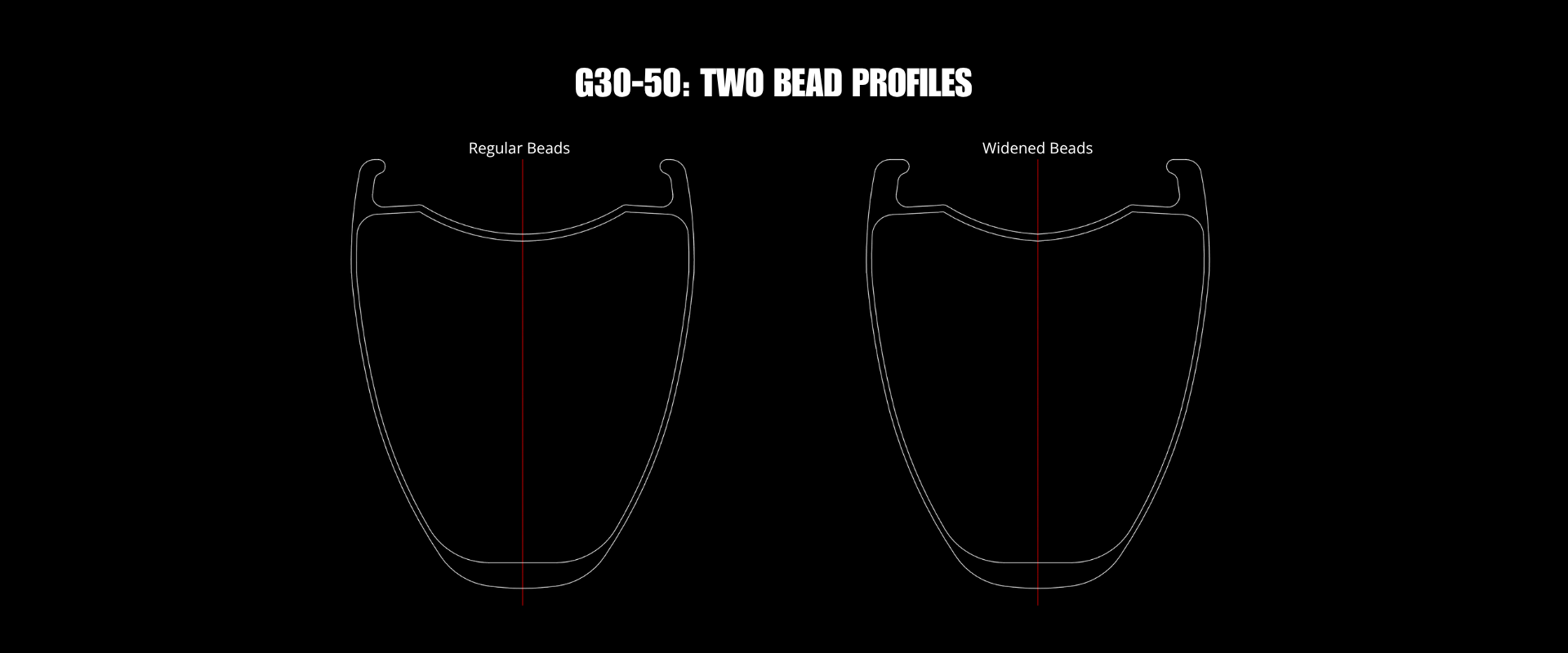

A common approach to improving impact resistance is increasing the width of the rim bead and optimizing the bead shape. The principle is straightforward: A wider bead provides a larger support platform for the tire bead and sidewall.
Although wider rim beads provide clear advantages, they also introduce new engineering challenges.
Traditional carbon rims are generally constructed with solid carbon structures in the bead area. Increasing bead width typically requires additional carbon material, which can result in:
Therefore, the challenge for rim engineers is not simply creating a wider bead. The real challenge is: How can we increase tire support and impact resistance without adding unnecessary weight? This balance is especially important for performance-oriented wheels, where every gram matters.
A downhill wheel, an XC race wheel, and a gravel adventure wheel may all benefit from wider bead designs, but their ideal solutions will be different.
There is no single wide bead design that fits every application. Depending on the intended usage, wheel brands may choose different bead geometries.
Advantages include:
The trade-off is that more material may be required, potentially increasing weight.

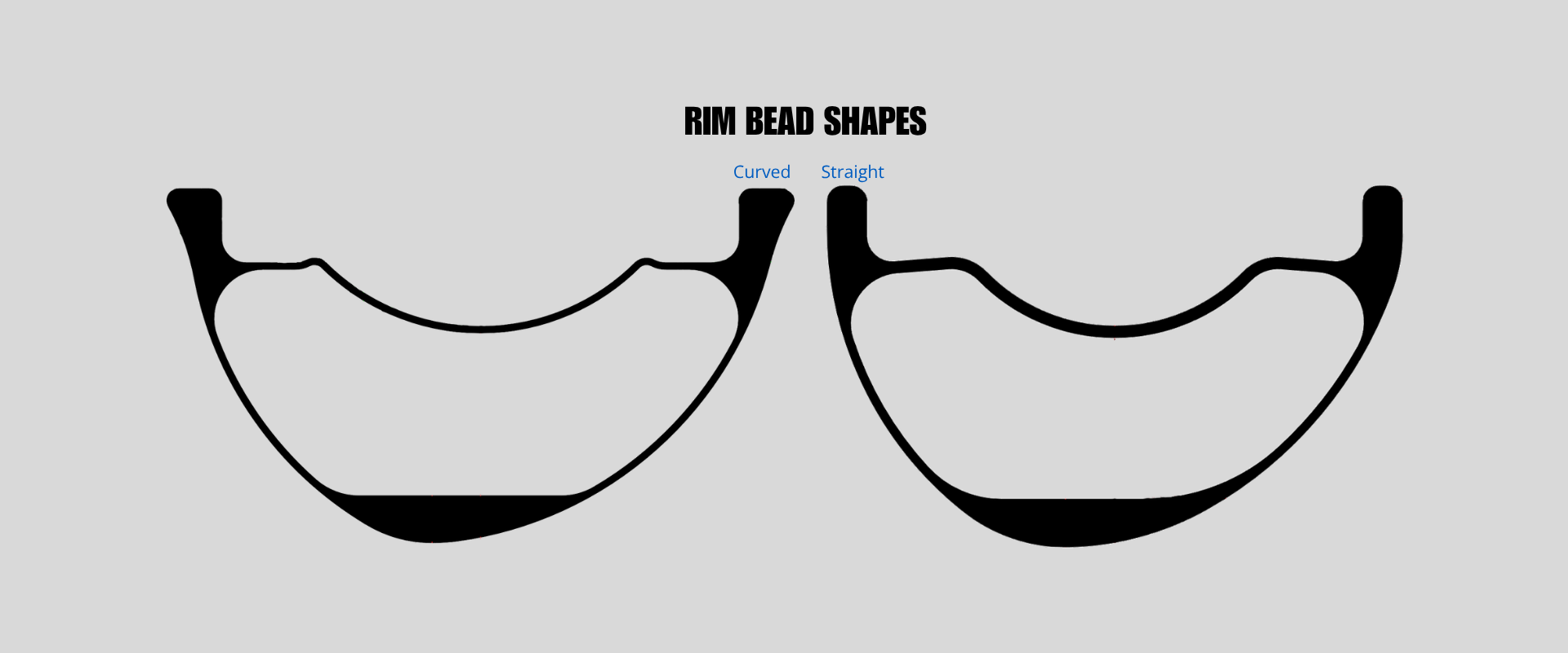

For applications where weight efficiency is critical, engineers may optimize the bead profile with a curved structure.
In this design:
This approach guarantees a reliable tire support while improving weight efficiency. However, the minimum width of the lower bead area must be carefully evaluated according to the intended usage and carbon layup design as it typically defines the max strength.
A well-optimized bead profile requires close cooperation between product designers and carbon engineers during development.
As demand for wider and more reliable rims increases, carbon rim manufacturers continue to explore new construction methods to overcome the traditional weight and performance penalties.
For rims requiring improved impact absorption and ride comfort, specialized elasticity-enhancing fibers can be integrated into critical bead areas. During hard impacts, these materials allow controlled deformation and help dissipate forces more effectively.
This can improve:
while maintaining the required structural strength.
Suggested applications: Enduro, Downhill, E-MTB
For some gravel applications, lightweight core materials can be integrated into the rim structure. These materials provide additional support in critical areas while reducing the need for excessive carbon reinforcement.
Suggested applications: Gravel (Racing), Cross Country
Another approach is creating a controlled hollow structure inside the bead area.
Instead of adding more solid carbon material, engineers use carefully designed internal structures to increase bead support while minimizing unnecessary weight. This allows manufacturers to achieve wider bead profiles without significantly increasing rim mass.
Suggested applications: Gravel (Racing)
For wheel brands developing a new carbon rim, rim bead design should be considered together with the complete product concept.
Important factors include:
The best rim design is not the widest or the strongest. It is the design that creates the right balance between performance, reliability, weight, and riding experience.
For wheel brands developing a new carbon rim, details such as bead geometry should be considered from the beginning of the design process.
A successful carbon rim requires more than selecting dimensions and creating a mold. It requires understanding the relationship between:

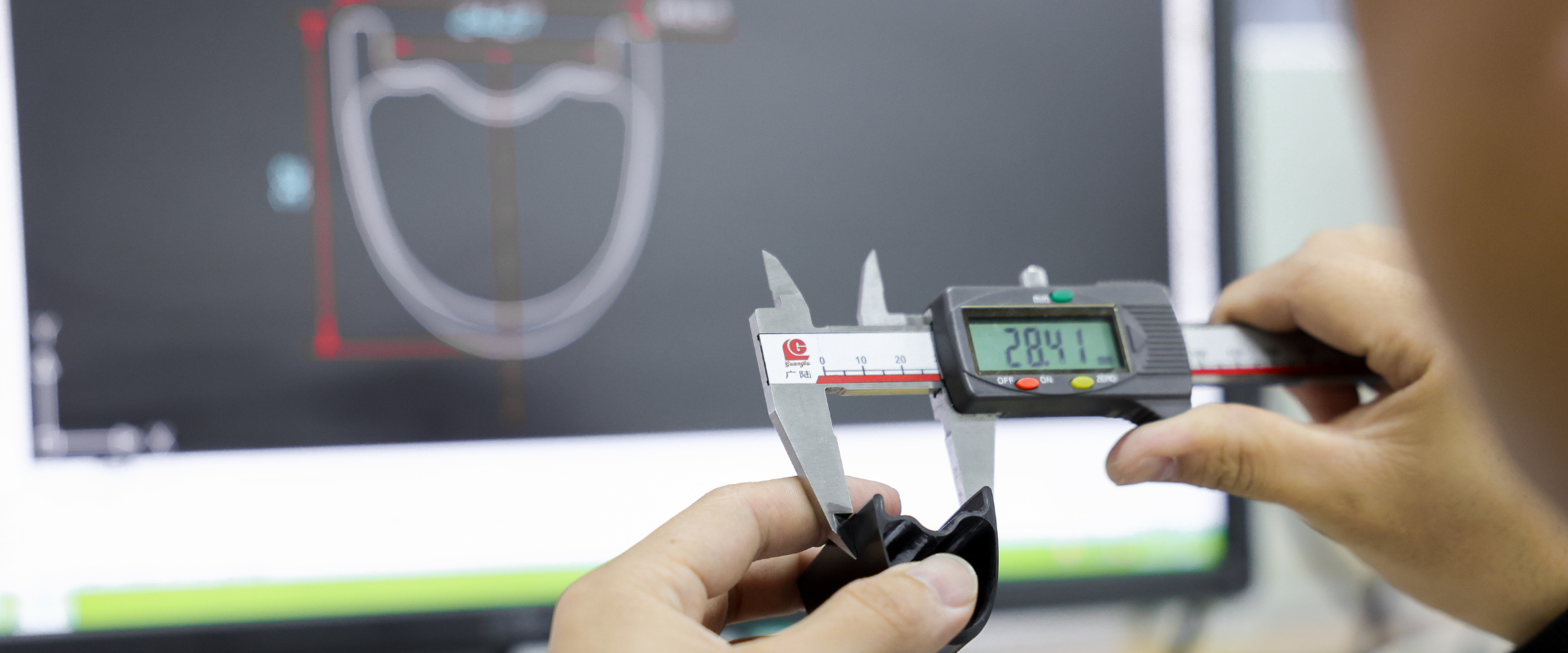

With experienced engineering support, an initial concept or drawing can be transformed into a production-ready carbon rim optimized for its intended market.
Because in modern carbon wheel development, performance is not created by one feature alone—it comes from how every element works together.
