Carbon Rim Weight Versions Explained
Introduction
When developing a new wheel product or selecting an open-mold carbon rim, rim weight is one of the first factors wheel brands evaluate.
Details
Most brands start with a target system weight. For example, if the goal is to create a lightweight climbing wheelset or a durable gravel wheelset, the desired rim weight is calculated based on the weight targets of the complete wheel system.
However, rim weight is not just a number on a specification sheet. Every rim design has a practical weight range. Going too light may compromise reliability, while adding unnecessary material may increase weight without meaningful performance benefits.
In this article, we explain how different rim weight versions are developed and how wheel brands can choose the right option for their products.
Rim Weight: Customizable, But Within Engineering Limits

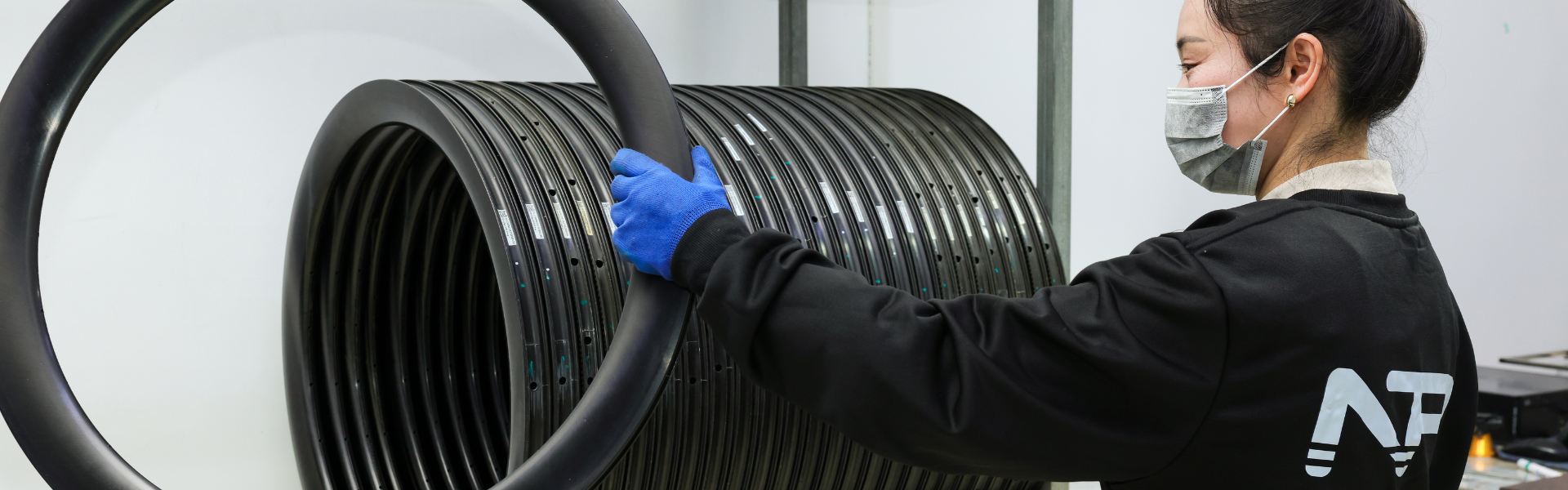

At NTP, when we discuss rim weight, we refer to the weight of the finished carbon rim with UD carbon weave and a paint-free/raw surface.
The final product weight can vary depending on:
paint or coating options
external carbon weave decoration such as 3K or 12K

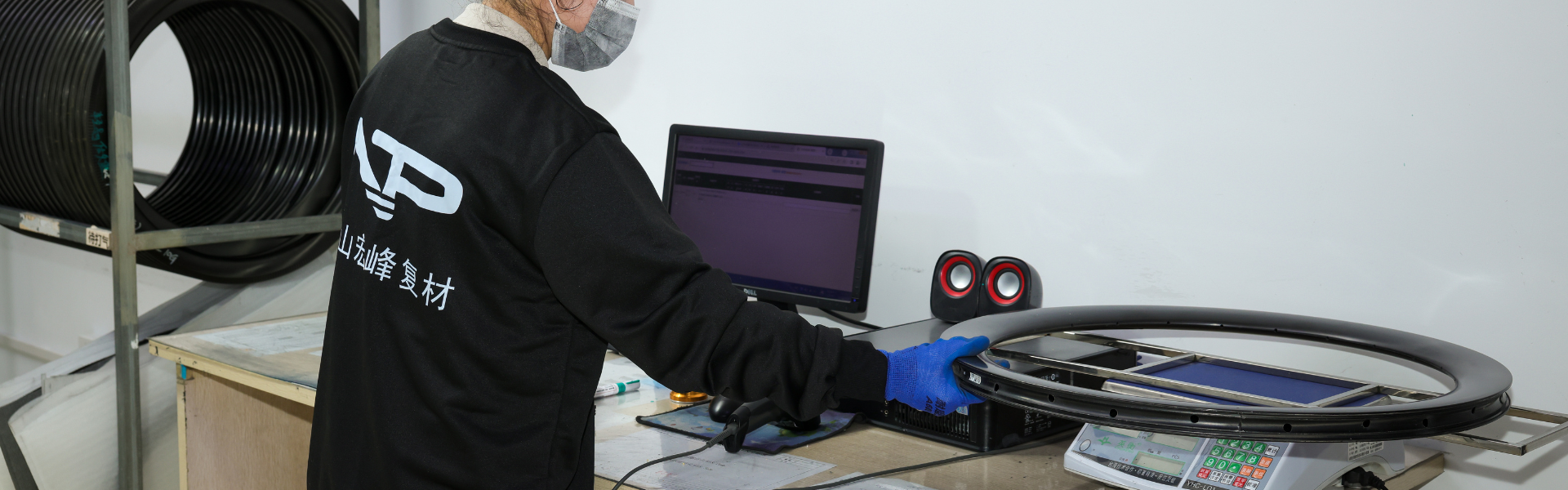

Because carbon rims are handcrafted composite products, a typical production tolerance is approximately ±15 grams. Unlike aluminum rims, carbon rims are manufactured by laminating multiple layers of carbon prepreg. The final weight and performance depend on many factors, including:
carbon fiber type and modulus
resin content
fiber areal weight (FAW)
number of carbon layers
reinforcement structures

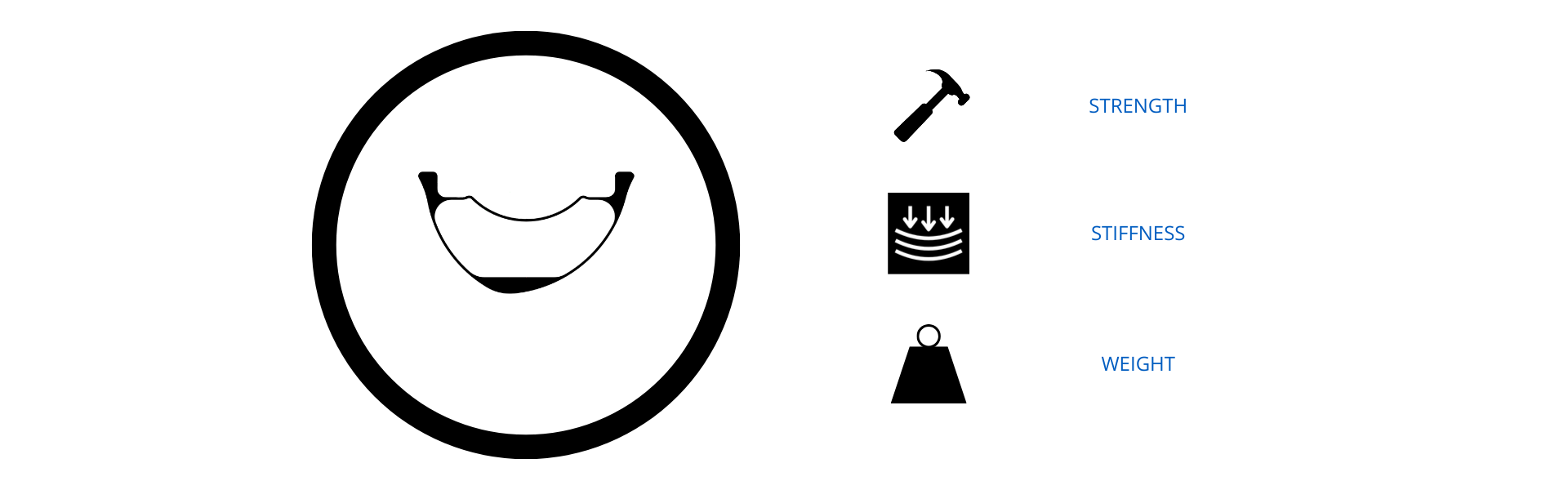

By optimizing the carbon layup, engineers can adjust the balance between weight, stiffness, and durability.
However, rim weight reduction is not unlimited. A lighter rim is not always a better rim, and a heavier rim is not always stronger. The optimal weight depends on the rim structure, intended use, and target rider.
Weight Optimization: Finding the Right Balance
In general, adding more material can improve strength and impact resistance. However, every rim design has a point where additional material provides diminishing returns.
For example, an older rim design may use outdated laminate strategies or excessive material in areas that no longer require reinforcement. In this case, reducing unnecessary material can lower weight without sacrificing performance.
On the other hand, removing too much material from a well-optimized design can negatively affect:
impact resistance
lateral stiffness
spoke load performance
long-term durability
Therefore, the goal of carbon rim development is not simply to achieve the listed weight. The goal is to create the lightest rim that meets the required performance standards for its intended application.
Three Main Carbon Rim Weight Versions
At NTP, carbon rims are usually developed in three weight categories:
Lightweight Version
Standard Version
Heavy-Duty Version
Each version serves a different product positioning and rider requirement.
Standard version: the best balance for most riders
The standard version represents the original design target, balancing:
weight
stiffness
strength
durability
production consistency
For most premium wheel products, this is the recommended choice because it provides a wide safety margin while maintaining competitive weight.
For wheel brands, the standard version is often the safest choice when the goal is:
premium product positioning
lower warranty risk
consistent production quality
wider customer compatibility
Lightweight version: for weight-focused performance products
The lightweight version is designed for products where minimum weight is the priority.
Typical applications include:
climbing road wheels
XC racing wheels
lightweight gravel wheels
products targeting lighter riders
Compared with the standard version, a lightweight rim is typically around 30–40 grams lighter per rim. To achieve this weight reduction, engineers optimize material distribution in areas where less reinforcement is required.
However, weight reduction comes with trade-offs. A lightweight rim generally has a lower impact resistance margin compared with the standard version.
For wheel brands, clearly defining the target rider is essential when selecting a lightweight version.
Heavy-Duty version: maximum reliability for demanding applications
The Heavy-Duty version focuses on durability and impact resistance. It is developed for applications where reliability is more important than minimum weight, such as:
enduro
downhill
e-bike applications
long-distance adventure riding
Compared with the standard version, a Heavy-Duty rim is typically 40–60 grams heavier per rim.
The additional material is strategically added to high-stress areas, such as:
impact zones
spoke hole areas
rim bead structures
The goal is not simply adding more carbon, but reinforcing the areas that contribute most to long-term durability.
Mixed weight configurations: optimizing the complete wheel system
For some applications, wheel brands choose different rim versions for the front and rear wheels.
A common example:
Lightweight front rim
Standard / Heavy-Duty rear rim
The reason is that front and rear wheels experience different loads. The rear wheel usually carries more rider weight and receives higher drivetrain and impact forces, while the front wheel contributes more to steering response and handling feel. However, mixed configurations require more careful inventory management during production.
How Do We Adjust Rim Weight During Development?
With the same rim profile, engineers can adjust weight through several methods.
1. Carbon layer optimization
The number and position of carbon layers have a direct influence on weight.
For example:
sidewalls generally experience less impact than other areas and can be optimized
spoke hole reinforcement can be adjusted according to spoke tension requirements
However, excessive material reduction may result in:
reduced stiffness
insufficient spoke support
lower impact resistance
Therefore, every weight reduction requires validation testing.

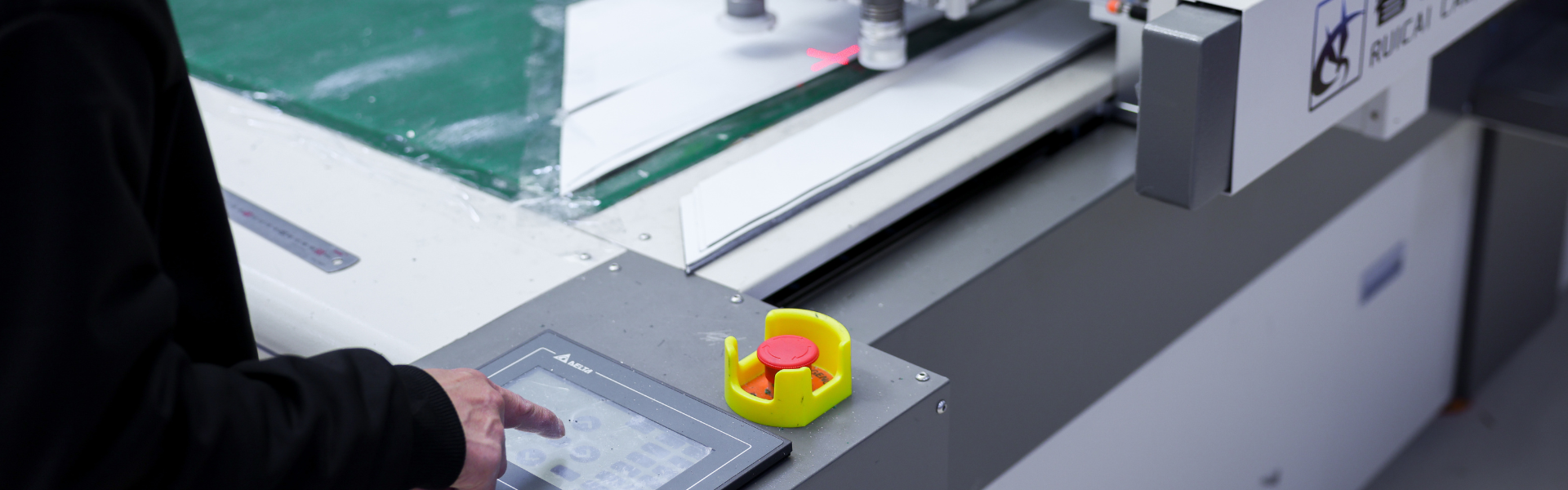

2. Carbon prepreg selection
Different carbon prepregs allow engineers to fine-tune weight and performance.
For example, replacing a higher fiber areal weight (FAW) material with a lighter FAW material can reduce overall weight.
A lighter material does not automatically create a better rim. It must be matched with the correct structural design.
3. Advanced composite technologies
Advanced materials can also help improve the weight-to-performance ratio.
For example, foam core structures are widely used in lightweight composite applications such as time trial disc wheels.
At NTP, we also explore advanced composite solutions, including foam core applications in specific rim structures, to reduce unnecessary material while maintaining performance.
Choosing the Right Rim Weight for Your Product
A 250g XC rim, a 400g gravel rim, and a 550g enduro rim are not competing products. They are solutions designed for different customers and riding scenarios.
As an OEM/ODM carbon rim manufacturer, NTP helps brands evaluate these factors and develop the right carbon structure for their product vision. Whether you are developing a lightweight racing wheelset or a durable adventure product, our engineering team can provide customized solutions based on your performance targets.
Contact NTP for your next carbon wheel project and let our engineers help you find the optimal balance between weight, performance, and reliability.
